KEIL SINGLE

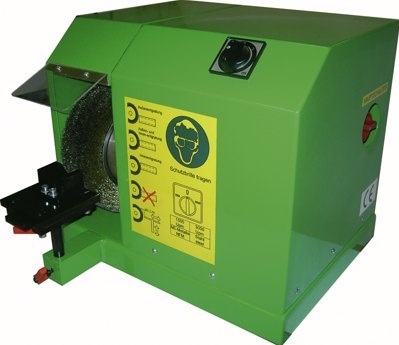

Deburring machine KEIL SINGLE

Brush deburring machine

entgrater 2 400
  • Brush deburring machine
  • Work piece support can be adjusted vertically and horizontally
  • Machine supplied on rubber feet (ensuring smooth running)
  • Work piece support for round tubes as standard
  • Extraction pipe as standard
  • Standard brush diameter 250 mm (200 mm and 300 mm optional)
  • Standard brush width 60 mm ( 20, 40, 80 and 100 mm optional)
  • Very quick brush change over, just one screw needs to released and adjusted.

Technical data

  • Dimension: 520 mm long, 570 mm wide, 460 mm high, weight 50 kg
  • Brush diameter: 200-250-300 mm variable
  • Brush width 20-40-60-80-100mm variable
  • 2 speed motor: 3000/1500 rpm 3,0/2,0 kW output
  • Voltage: 400 V/50 Hz

Usage

Tubes and sections are deburred inside and outside simultaneously in one pass

Equipment

  • Pole changeable motor: 1500/3000 rpm
  • Motor protection switch for both rpms
  • CE certificate

Maintenance

  • No maintenance required for brush deburrer.
  • Keep machine clean.
  • Check connections from time to time. Do not block up the ventilation holes.
logo pdf

Brochure Download (pdf, ca. 1,7 MB)

Please ask for a test machine:

You will receive a machine for trial purposes for 5 working days; you can test the performance on your own work pieces!

We supply roller brushes suitable for all makes
